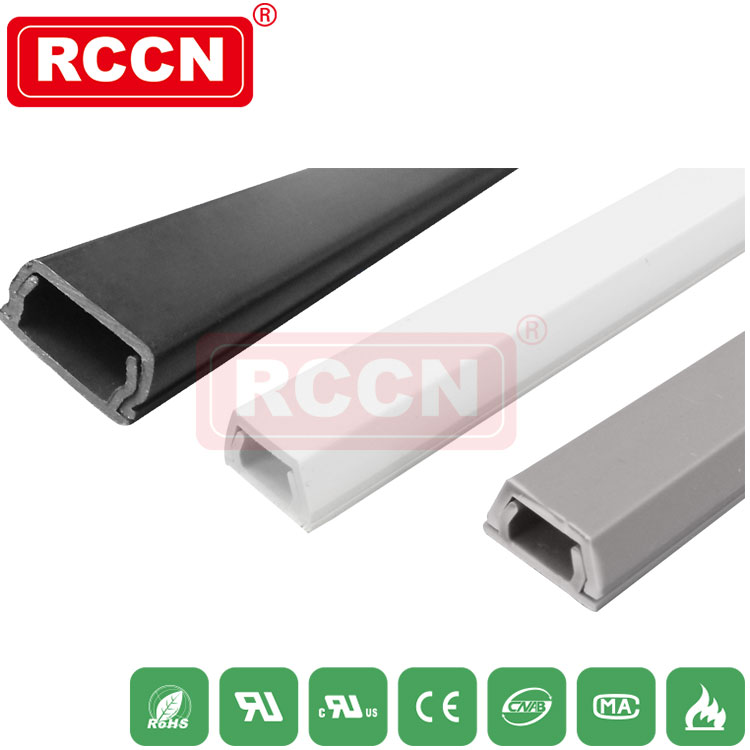

Duto de fiação TC

RCCN Cabo de fiação do telefone

mooth corners and edges that will not
abrade wiring or irritate hands.
Integrated nonskid liners and unique cover
designs insures the duct
cover will not slide once installed or during
vibration
Specially formulated lead-free PVC material
meet the lame retardant requirements.
Material: PVC

Cabo de fiação do telefone, Fio de fiação

Especificação

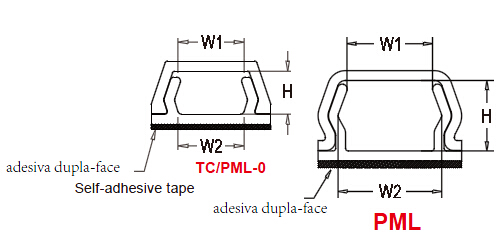

Item número.				Dentro largura W1	Dentro largura W2	Dentro altura H	Comprimento
Cinzento	Bege	Branco	Preto	Dentro largura W1	Dentro largura W2	Dentro altura H	Comprimento
TC-1	TC-1Y	TC-1W	TC-1B	8	9	5	1M ou 2M
TC-2	TC-2Y	TC-2W	TC-2B	11	12	7
PML-0	PML-0Y	PML-0W	PML-0B	7.5	7.5	4
PML-1	PML-1Y	PML-1W	PML-1B	10	11.5	7.8
PML-2	PML-2Y	PML-2W	PML-2B	14.5	15.7	7.8
PML-3	PML-3Y	PML-3W	PML-3B	19.5	21.2	10.6
PML-4	PML-4Y	PML-4W	PML-4B	24	26	12.2
PML-5	PML-5Y	PML-5W	PML-5B	30.8	32.8	14.4
