Nylon rivets, rivets, rivets specifications

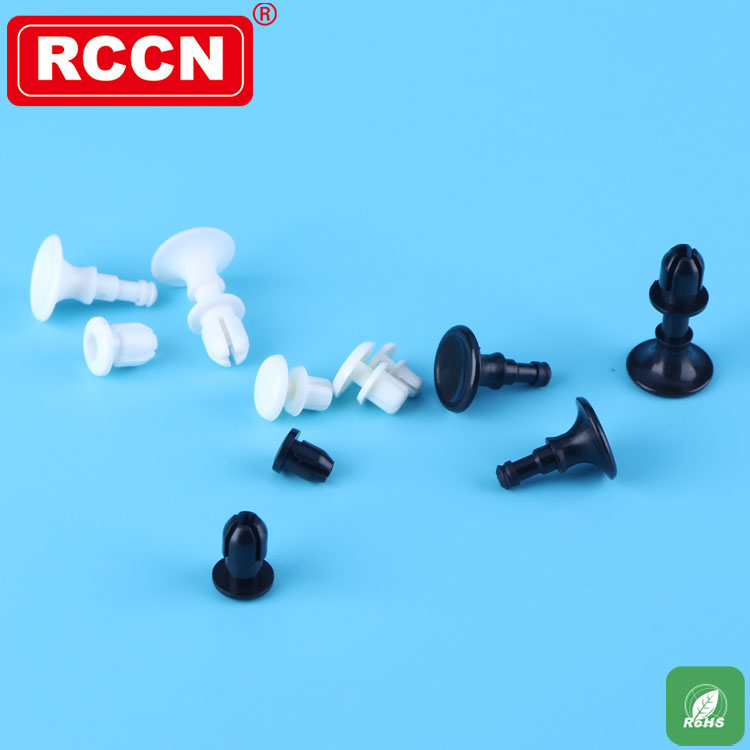

Male and female retractable nylon rivets SG

Material: Imported UL qualified NYLON66.
Fire rating: 94V-2, not easy to age
Usage: Firstly drill the machine board and the fixed board, and then put the product into the compaction, then the two boards can be combined.
Uses: PC board and machine board fixed, replace the screw, complete the assembly without tools
Color: black, white
Features: Easy to disassemble and easy to fix.
Excellent quality and fine workmanship.

model		Abertura de montagem		Espessura da placa aplicável T1	Tamanho Dimensions				FIG.NO.		Embalagem Pkg pcs
Preto	Branco	Furo da placa móvel DR	Furo de placa fixa DF	Espessura da placa aplicável T1	W	H	L	T	Top	Inferior	Embalagem Pkg pcs
SGSL-SPLSLB	SGSL-SPLSLW	7.5-7.7	8.0-8.2	1.5-3.7	10.8	2.0	8.6	1.1	1	A	1000PCS
SG1L-SPL1LB	SG1L-SPL1LW	7.5-7.7	8.0-8.2	2.0-4.2	10.8	2.0	9.0	1.6	1	A
SG2L-SPL2LB	SG2L-SPL2LW	7.5-7.7	8.0-8.2	3.0-5.2	10.8	2.0	10.0	2.5	1	A
SG3L-SPL3LB	SG3L-SPL3LW	7.5-7.7	8.0-8.2	4.6-6.9	10.8	2.0	11.7	4.1	1	A
SG4L-SPL4LB	SG4L-SPL4LW	7.5-7.7	8.0-8.2	5.8-8.1	10.8	2.0	12.9	5.3	1	A
SGSL-SPB1LB	SGSL-SPB1LW	7.5-7.7	8.0-8.2	1.5-3.7	10.8	2.0	8.6	1.1	2	B
SG1L-SPB1MB	SG1L-SPB1MW	7.5-7.7	8.0-8.2	2.0-4.2	10.8	2.0	9.0	1.6	2	B
SG2L-SPB2MB	SG2L-SPB2MW	7.5-7.7	8.0-8.2	3.0-5.2	10.8	2.0	10.0	2.5	2	B
SG3L-SPB3MB	SG3L-SPB3MW	7.5-7.7	8.0-8.2	4.6-6.9	10.8	2.0	11.7	4.1	2	B
SG4L-SPB4MB	SG4L-SPB4MW	7.5-7.7	8.0-8.2	5.8-8.1	10.8	2.0	12.9	5.3	2	B
SG1M-SPB1MB	SG1M-SPB1MW	5.9-6.1	6.3-6.5	1.5-3.7	8.5	1.8	8.0	1.1	3	C
SG2M-SPB2MB	SG2M-SPB2MW	5.9-6.1	6.3-6.5	2.0-4.2	8.5	1.8	8.5	1.6	3	C
SG3M-SPB3MB	SG3M-SPB3MW	5.9-6.1	6.3-6.5	3.0-5.2	8.5	1.8	9.5	1.8	3	C
SG4M-SPB4MB	SG4M-SPB4MW	5.9-6.1	6.3-6.5	4.6-6.9	8.5	1.8	11.0	1.8	3	C
SG1S-SPB1SB	SG1S-SPB1SW	4.6	4.8	1.5-3.7	6.5	1.2	7.6	1.0	4	D
SG2S-SPB2SB	SG2S-SPB2SW	4.6	4.8	2.0-4.2	6.5	1.2	8.1	1.5	4	D
