Conduta de Fiação HVDRF

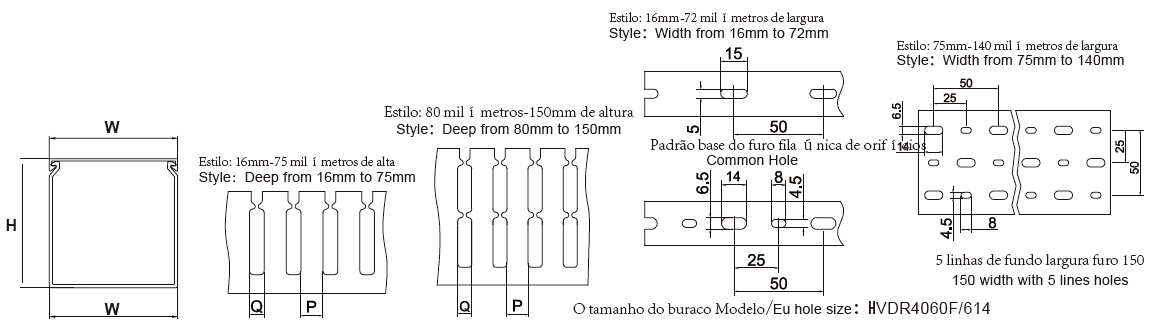

Item número. The outlet hO orifício de saída 4MM				W*H	Q	P	Fio capacidade / 2.0sp	Pack/M
Cinzento	Branco	Azul	Preto	W*H	Q	P	Fio capacidade / 2.0sp	Pack/M
HVDR1616F	HVDR1616FW	HVDR1616FE	HVDR1616FB	16*16	5	5	3~10pcs	300M
HVDR2516F	HVDR2516FW	HVDR2516FE	HVDR2516FB	25*16	5	5	3~10pcs	100M
HVDR1520F	HVDR1520FW	HVDR1520FE	HVDR1520FB	15*20	4	6	8~12pcs	260M
HVDR2020F	HVDR2020FW	HVDR2020FE	HVDR2020FB	20*20	4	6	10~20pcs	240M
HVDR4020F	HVDR4020FW	HVDR4020FE	HVDR4020FB	40*20	4	6	12~28pcs	140M
HVDR1525F	HVDR1525FW	HVDR1525FE	HVDR1525FB	15*25	5	6	5~15pcs	260M
HVDR2025F	HVDR2025FW	HVDR2025FE	HVDR2025FB	20*20	4	6	5~15pcs	200M
HVDR2525F	HVDR2525FW	HVDR2525FE	HVDR2525FB	25*25	4	6	10~25pcs	200M
HVDR3025F	HVDR3025FW	HVDR3025FE	HVDR3025FB	30*25	4	6	12~28pcs	160M
HVDR4025F	HVDR4025FW	HVDR4025FE	HVDR4025FB	40*25	4	6	12~28pcs	100M
HVDR5025F	HVDR5025FW	HVDR5025FE	HVDR5025FB	50*25	4	6	20~30pcs	100M
HVDR1530F	HVDR1530FW	HVDR1530FE	HVDR1530FB	15*30	4	6	20~30pcs	180M
HVDR2030F	HVDR2030FW	HVDR2030FE	HVDR2030FB	20*30	4	6	20~30pcs	160M
HVDR2530F	HVDR2530FW	HVDR2530FE	HVDR2530FB	25*30	4	6	25~35pcs	160M
HVDR3030F	HVDR3030FW	HVDR3030FE	HVDR3030FB	30*30	4	6	25~35pcs	140M
HVDR4030F	HVDR4030FW	HVDR4030FE	HVDR4030FB	40*30	4	6	30~40pcs	100M
HVDR5030F	HVDR5030FW	HVDR5030FE	HVDR5030FB	50*30	4	6	35~45pcs	80M
HVDR6030F	HVDR6030FW	HVDR6030FE	HVDR6030FB	60*30	4	6	40~50pcs	60M
HVDR2233F	HVDR2233FW	HVDR2233FE	HVDR2233FB	22*33	5	6	30~45pcs	160M
HVDR3333F	HVDR3333FW	HVDR3333FE	HVDR3333FB	33*33	4	6	35~45pcs	160M
HVDR2035F	HVDR2035FW	HVDR2035FE	HVDR2035FB	20*35	4	6	30~40pcs	100M
HVDR3535F	HVDR3535FW	HVDR3535FE	HVDR3535FB	35*35	4	6	35~45pcs	112M
HVDR5035F	HVDR5035FW	HVDR5035FE	HVDR5035FB	50*35	4	6	40~60pcs	88M
HVDR2040F	HVDR2040FW	HVDR2040FE	HVDR2040FB	20*40	4	6	16~22pcs	110M
HVDR2540F	HVDR2540FW	HVDR2540FE	HVDR2540FB	25*40	4	6	20~25pcs	112M
HVDR3540F	HVDR3540FW	HVDR3540FE	HVDR3540FB	35*40	4	6	50~60pcs	100M
HVDR4040F	HVDR4040FW	HVDR4040FE	HVDR4040FB	40*40	4	6	60~70pcs	100M
HVDR6040F	HVDR6040FW	HVDR6040FE	HVDR6040FB	60*40	4	6	100~115pcs	68M
HVDR8040F	HVDR8040FW	HVDR8040FE	HVDR8040FB	80*40	4	6	120~135pcs	48M
HVDR10040F	HVDR10040FW	HVDR10040FE	HVDR10040FB	100*40	4	6	120~135pcs	32M
HVDR12040F	HVDR12040FW	HVDR12040FE	HVDR12040FB	120*40	4	6	140-155pcs	/
HVDR2545F	HVDR2545FW	HVDR2545FE	HVDR2545FB	25*45	4	6	20~25pcs	104M
HVDR3345F	HVDR3345FW	HVDR3345FE	HVDR3345FB	33*45	4	6	40~55pcs	108M
HVDR4545F	HVDR4545FW	HVDR4545FE	HVDR4545FB	45*45	4	6	60~70pcs	72M
HVDR6545F	HVDR6545FW	HVDR6545FE	HVDR6545FB	65*45	4	6	110~120pcs	56M
HVDR2050F	HVDR2050FW	HVDR2050FE	HVDR2050FB	20*50	4	6	18~28pcs	100M
HVDR2550F	HVDR2550FW	HVDR2550FE	HVDR2550FB	25*50	4	6	20~30pcs	100M
HVDR3050F	HVDR3050FW	HVDR3050FE	HVDR3050FB	30*50	4	6	25~40pcs	84M
HVDR3550F	HVDR3550FW	HVDR3550FE	HVDR3550FB	35*50	4	6	40~60pcs	80M
HVDR4050F	HVDR4050FW	HVDR4050FE	HVDR4050FB	40*50	4	6	60~70pcs	68M
HVDR4550F	HVDR4550FW	HVDR4550FE	HVDR4550FB	45*50	4	6	70~80pcs	60M
HVDR5050F	HVDR5050FW	HVDR5050FE	HVDR5050FB	50*50	4	6	80~90pcs	50M
HVDR5550F	HVDR5550FW	HVDR5550FE	HVDR5550FB	55*50	4	6	80~90pcs	48M
HVDR6050F	HVDR6050FW	HVDR6050FE	HVDR6050FB	60*50	4	6	100~120pcs	48M
HVDR7550F	HVDR7550FW	HVDR7550FE	HVDR7550FB	75*50	4	6	120~140pcs	40M
HVDR8050F	HVDR8050FW	HVDR8050FE	HVDR8050FB	80*50	4	6	160~180pcs	40M
HVDR10050F	HVDR10050FW	HVDR10050FE	HVDR10050FB	100*50	4	6	200~250pcs	26M
HVDR12555F	HVDR12555FW	HVDR12555FE	HVDR12555FB	125*55	4	6	220~270pcs	20M
HVDR2060F	HVDR2060FW	HVDR2060FE	HVDR2060FB	20*60	4	6	35~45pcs	100M
HVDR2560F	HVDR2560FW	HVDR2560FE	HVDR2560FB	25*60	4	6	40~50pcs	100M
HVDR3060F	HVDR3060FW	HVDR3060FE	HVDR3060FB	30*60	4	6	60~80pcs	80M
HVDR3560F	HVDR3560FW	HVDR3560FE	HVDR3560FB	35*60	4	6	90~105pcs	78M
HVDR4060F	HVDR4060FW	HVDR4060FE	HVDR4060FB	40*60	4	6	100~115pcs	60M
HVDR4560F	HVDR4560FW	HVDR4560FE	HVDR4560FB	45*60	4	6	110~125pcs	30M
HVDR5060F	HVDR5060FW	HVDR5060FE	HVDR5060FB	50*60	4	6	120~135pcs	60M
HVDR6060F	HVDR6060FW	HVDR6060FE	HVDR6060FB	60*60	4	6	120~135pcs	48M
HVDR8060F	HVDR8060FW	HVDR8060FE	HVDR8060FB	80*60	4	6	180~210pcs	36M
HVDR10060F	HVDR10060FW	HVDR10060FE	HVDR10060FB	100*60	4	6	240~290pcs	28M
HVDR11060F	HVDR11060FW	HVDR11060FE	HVDR11060FB	110*60	4	6	250~300pcs	48M
HVDR12060F	HVDR12060FW	HVDR12060FE	HVDR12060FB	120*60	4	6	260~320pcs	48M
HVDR15060F	HVDR15060FW	HVDR15060FE	HVDR15060FB	150*60	4	6	300~360pcs	16M
HVDR2565F	HVDR2565FW	HVDR2565FE	HVDR2565FB	25*65	4	6	40~50pcs	88M
HVDR3365F	HVDR3365FW	HVDR3365FE	HVDR3365FB	33*65	4	6	40~70pcs	80M
HVDR4565F	HVDR4565FW	HVDR4565FE	HVDR4565FB	45*65	4	6	110~120pcs	52M
HVDR6565F	HVDR6565FW	HVDR6565FE	HVDR6565FB	65*65	4	6	180~200pcs	44M
HVDR7265F	HVDR7265FW	HVDR7265FE	HVDR7265FB	72*65	4	6	180~230pcs	42M
HVDR2575F	HVDR2575FW	HVDR2575FE	HVDR2575FB	25*75	4	6	180-210pcs	/
HVDR3575F	HVDR3575FW	HVDR3575FE	HVDR3575FB	35*75	4	6	180-210pcs	/
HVDR5075F	HVDR5075FW	HVDR5075FE	HVDR5075FB	50*75	4	6	180~210pcs	42M
HVDR7575F	HVDR7575FW	HVDR7575FE	HVDR7575FB	75*75	4	6	200~240pcs	40M
HVDR10075F	HVDR10075FW	HVDR10075FE	HVDR10075FB	100*75	4	6	240~280pcs	24M
HVDR2580F	HVDR2580FW	HVDR2580FE	HVDR2580FB	25*80	4	6	100~120pcs	72M
HVDR3080F	HVDR3080FW	HVDR3080FE	HVDR3080FB	30*80	4	6	110~125pcs	56M
HVDR3580F	HVDR3580FW	HVDR3580FE	HVDR3580FB	35*80	4	6	110~130pcs	56M
HVDR4080F	HVDR4080FW	HVDR4080FE	HVDR4080FB	40*80	4	6	140~160pcs	48M
HVDR4580F	HVDR4580FW	HVDR4580FE	HVDR4580FB	45*80	4	6	140~160pcs	40M
HVDR5080F	HVDR5080FW	HVDR5080FE	HVDR5080FB	50*80	4	6	160~180pcs	40M
HVDR5580F	HVDR5580FW	HVDR5580FE	HVDR5580FB	55*80	4	6	160~180pcs	32M
HVDR6080F	HVDR6080FW	HVDR6080FE	HVDR6080FB	60*80	4	6	180~210pcs	32M
HVDR8080F	HVDR8080FW	HVDR8080FE	HVDR8080FB	80*80	4	6	240~290pcs	24M
HVDR10080F	HVDR10080FW	HVDR10080FE	HVDR10080FB	100*80	4	6	260~350pcs	24M
HVDR12080F	HVDR12080FW	HVDR12080FE	HVDR12080FB	120*80	4	6	280~380pcs	16M
HVDR14080F	HVDR14080FW	HVDR14080FE	HVDR14080FB	140*80	4	6	350~450pcs	16M
HVDR16080F	HVDR16080FW	HVDR16080FE	HVDR16080FB	160*80	4	6	50-550pcs	/
HVDR25100F	HVDR25100FW	HVDR25100FE	HVDR25100FB	25*100	4	6	110~160pcs	60M
HVDR33100F	HVDR33100FW	HVDR33100FE	HVDR33100FB	33*100	4	6	130~175pcs	44M
HVDR40100F	HVDR40100FW	HVDR40100FE	HVDR40100FB	40*100	4	6	130~175pcs	40M
HVDR50100F	HVDR50100FW	HVDR50100FE	HVDR50100FB	50*100	4	6	220~250pcs	40M
HVDR60100F	HVDR60100FW	HVDR60100FE	HVDR60100FB	60*100	4	6	240~290pcs	32M
HVDR70100F	HVDR70100FW	HVDR70100FE	HVDR70100FB	70*100	4	6	250~310pcs	24M
HVDR75100F	HVDR75100FW	HVDR75100FE	HVDR75100FB	75*100	4	6	260~350pcs	24M
HVDR80100F	HVDR80100FW	HVDR80100FE	HVDR80100FB	80*100	4	6	260~350pcs	24M
HVDR100100F	HVDR100100FW	HVDR100100FE	HVDR100100FB	100*100	4	6	300~400pcs	24M
HVDR120100F	HVDR120100FW	HVDR120100FE	HVDR120100FB	120*100	4	6	350~450pcs	16M
HVDR150100F	HVDR150100FW	HVDR150100FE	HVDR150100FB	150*100	4	6	400~650pcs	16M
HVDR150130F	HVDR150130FW	HVDR150130EF	HVDR150130FB	150*130	4	6	400~650pcs	16M
HVDR160100F	HVDR160100FW	HVDR160100FE	HVDR160100FB	160*100	4	6	500-750pcs	/
HVDR100130F	HVDR100130FW	HVDR100130FE	HVDR100130FB	100*130	4	6	350-450pcs	/
HVDR200100F	HVDR200100FW	HVDR200100FE	HVDR200100FB	200*100	4	6	600~800pcs	16M
HVDR200150F	HVDR200150FW	HVDR200150FE	HVDR200150FB	200*150	4	6	900-1200pcs	16M
HVDR200200F	HVDR200200FW	HVDR200200FE	HVDR200200FB	200*200	4	6	1200-1600pcs	16
