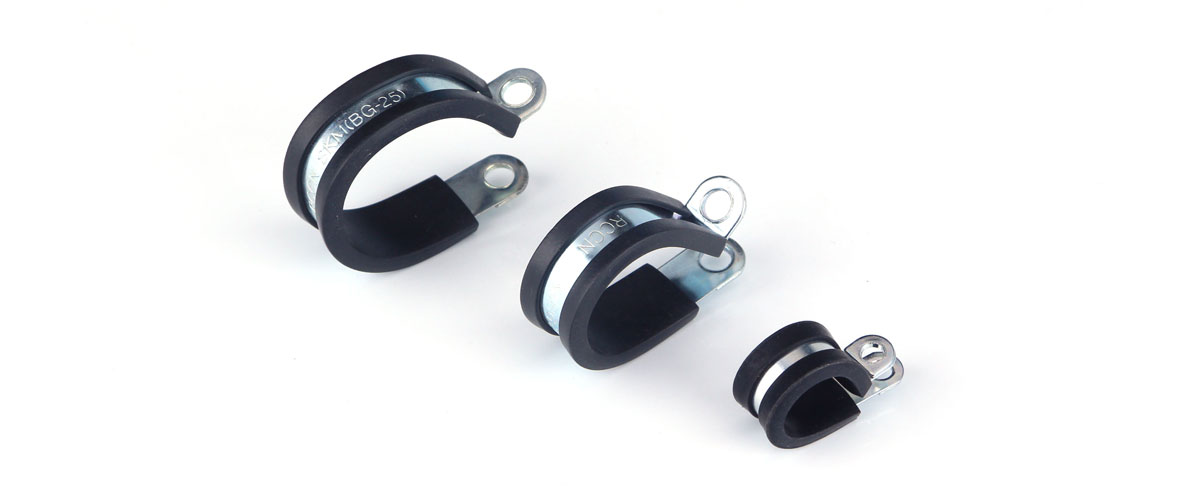

braçadeiras,grampos,anel de fixação

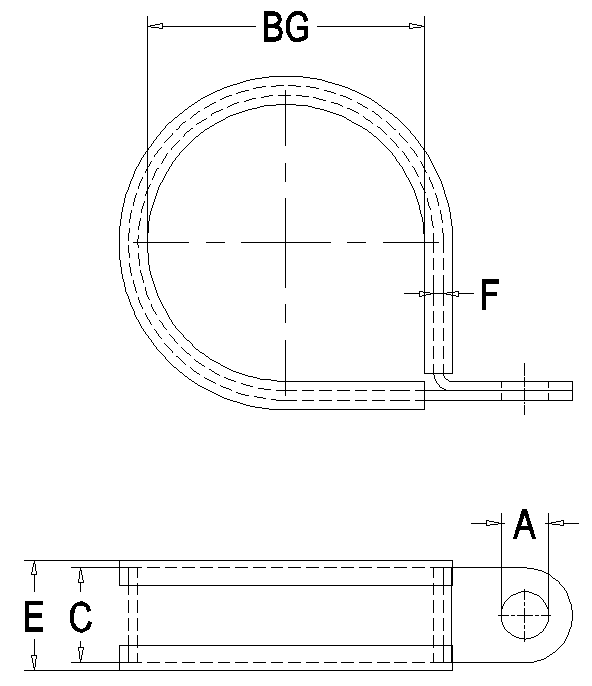

modelo Item No.	Richeng Modelo mangueira RCCN Conduit item no	tubing OD Conduit outer dia AD	orifícios dos parafusos Thread hole A	largura Width E/C	espessura Thickness F
Aço laminado a frio galvanizado
SKM/M4
SKM BG-07(M4)	BG-07	10mm	M4	14/9	0.5
SKM BG-10(M4)	BG-10	13mm	M4	14/9	0.5
SKM BG-12(M4)	BG-12	15.8mm	M4	14/9	0.5
SKM BG-15(M4)	BG-15	18.5mm	M4	14/9	0.5
SKM BG-17(M4)	BG-17	21.2mm	M4	14/9	0.5
SKM BG-20(M4)	BG-20	25mm	M4	14/9	0.5
SKM BG-23(M4	BG-23	28.5mm	M4	14/9	0.5
SKM BG-25(M4)	BG-25	30.0mm	M4	14/9	0.5
SKM BG-29(M4)	BG-29	34.5mm	M4	14/9	0.5
SKM BG-36(M4)	BG-36	42.5mm	M4	14/9	0.5
SKM BG-48(M4)	BG-48	54.5mm	M4	14/9	0.5
SKM/M6
SKM BG-07(M6)	BG-07	10mm	M6	15/12	0.5
SKM BG-10(M6)	BG-10	13mm	M6	15/12	0.5
SKM BG-12(M6)	BG-12	15.8mm	M6	15/12	0.5
SKM BG-15(M6)	BG-15	18.5mm	M6	15/12	0.5
SKM BG-17(M6)	BG-17	21.2mm	M6	15/12	0.5
SKM BG-20(M6)	BG-20	25mm	M6	15/12	0.5
SKM BG-23(M6)	BG-23	28.5mm	M6	15/12	0.5
SKM BG-25(M6)	BG-25	30.0mm	M6	15/12	0.5
SKM BG-29(M6)	BG-29	34.5mm	M6	15/12	0.5
SKM BG-36(M6)	BG-36	42.5mm	M6	15/12	0.5
SKM BG-48(M6)	BG-48	54.5mm	M6	15/12	0.5
SKM/M6D
SKM BG-07(M6D)	BG-07	10mm	M6	24.5/20	1.0
SKM BG-10(M6D)	BG-10	13mm	M6	24.5/20	1.0
SKM BG-12(M6D)	BG-12	15.8mm	M6	24.5/20	1.0
SKM BG-15(M6D)	BG-15	18.5mm	M6	24.5/20	1.0
SKM BG-17(M6D)	BG-17	21.2mm	M6	24.5/20	1.0
SKM BG-20(M6D)	BG-20	25mm	M6	24.5/20	1.0
SKM BG-23(M6D)	BG-23	28.5mm	M6	24.5/20	1.0
SKM BG-25(M6D)	BG-25	30.0mm	M6	24.5/20	1.0
SKM BG-29(M6D)	BG-29	34.5mm	M6	24.5/20	1.0
SKM BG-36(M6D)	BG-36	42.5mm	M6	24.5/20	1.0
SKM BG-48(M6D)	BG-48	54.5mm	M6	24.5/20	1.0
SKM/M8
SKM BG-07(M8)	BG-0	10mm	M8	24.5/20	1.0
SKM BG-10(M8)	BG-10	13mm	M8	24.5/20	1.0
SKM BG-12(M8)	BG-12	15.8mm	M8	24.5/20	1.0
SKM BG-15(M8)	BG-15	18.5mm	M8	24.5/20	1.0
SKM BG-17(M8)	BG-17	21.2mm	M8	24.5/20	1.0
SKM BG-20(M8)	BG-20	25mm	M8	24.5/20	1.0
SKM BG-23(M8)	BG-23	28.5mm	M8	24.5/20	1.0
SKM BG-25(M8)	BG-25	30.0mm	M8	24.5/20	1.0
SKM BG-29(M8)	BG-29	34.5mm	M8	24.5/20	1.0
SKM BG-36(M8)	BG-36	42.5mm	M8	24.5/20	1.0
SKM BG-48(M8)	BG-48	54.5mm	M8	24.5/20	1.0
SKM/M10
SKM BG-07(M10)	BG-07	10mm	M10	30/25	1.0
SKM BG-10(M10)	BG-10	13mm	M10	30/25	1.0
SKM BG-12(M10)	BG-12	15.8mm	M10	30/25	1.0
SKM BG-15(M10)	BG-15	18.5mm	M10	30/25	1.0
SKM BG-17(M10)	BG-17	21.2mm	M10	30/25	1.0
SKM BG-20(M10)	BG-20	25mm	M10	30/25	1.0
SKM BG-23(M10)	BG-23	28.5mm	M10	30/25	1.0
SKM BG-25(M10)	BG-25	30.0mm	M10	30/25	1.0
SKM BG-29(M10)	BG-29	34.5mm	M10	30/25	1.0
SKM BG-36(M10)	BG-36	42.5mm	M10	30/25	1.0
SKM BG-48(M10)	BG-48	54.5mm	M10	30/25	1.0
SKM BG-70(M10)	BG-67	70.0mm	M10	30/25	1.0
304material
SKM/M4
SKM BG-07(M4)/304	BG-07	10mm	M4	14/9	0.5
SKM BG-10(M4)/304	BG-10	13mm	M4	14/9	0.5
SKM BG-12(M4)/304	BG-12	15.8mm	M4	14/9	0.5
SKM BG-15(M4)/304	BG-15	18.5mm	M4	14/9	0.5
SKM BG-17(M4)/304	BG-17	21.2mm	M4	14/9	0.5
SKM BG-20(M4)/304	BG-20	25mm	M4	14/9	0.5
SKM BG-23(M4/304	BG-23	28.5mm	M4	14/9	0.5
SKM BG-25(M4)/304	BG-25	30.0mm	M4	14/9	0.5
SKM BG-29(M4)/304	BG-29	34.5mm	M4	14/9	0.5
SKM BG-36(M4)/304	BG-36	42.5mm	M4	14/9	0.5
SKM BG-48(M4)/304	BG-48	54.5mm	M4	14/9	0.5
SKM/M6
SKM BG-07(M6)/304	BG-07	10mm	M6	15/12	0.5
SKM BG-10(M6)/304	BG-10	13mm	M6	15/12	0.5
SKM BG-12(M6)/304	BG-12	15.8mm	M6	15/12	0.5
SKM BG-15(M6)/304	BG-15	18.5mm	M6	15/12	0.5
SKM BG-17(M6)/304	BG-17	21.2mm	M6	15/12	0.5
SKM BG-20(M6)/304	BG-20	25mm	M6	15/12	0.5
SKM BG-23(M6)/304	BG-23	28.5mm	M6	15/12	0.5
SKM BG-25(M6)/304	BG-25	30.0mm	M6	15/12	0.5
SKM BG-29(M6)/304	BG-29	34.5mm	M6	15/12	0.5
SKM BG-36(M6)/304	BG-36	42.5mm	M6	15/12	0.5
SKM BG-48(M6)/304	BG-48	54.5mm	M6	15/12	0.5
SKM/M6D
SKM BG-07(M6D)/304	BG-07	10mm	M6	24.5/20	1.0
SKM BG-10(M6D)/304	BG-10	13mm	M6	24.5/20	1.0
SKM BG-12(M6D)/304	BG-12	15.8mm	M6	24.5/20	1.0
SKM BG-15(M6D)/304	BG-15	18.5mm	M6	24.5/20	1.0
SKM BG-17(M6D)/304	BG-17	21.2mm	M6	24.5/20	1.0
SKM BG-20(M6D)/304	BG-20	25mm	M6	24.5/20	1.0
SKM BG-23(M6D)/304	BG-23	28.5mm	M6	24.5/20	1.0
SKM BG-25(M6D)/304	BG-25	30.0mm	M6	24.5/20	1.0
SKM BG-29(M6D)/304	BG-29	34.5mm	M6	24.5/20	1.0
SKM BG-36(M6D)/304	BG-36	42.5mm	M6	24.5/20	1.0
SKM BG-48(M6D)/304	BG-48	54.5mm	M6	24.5/20	1.0
SKM/M8
SKM BG-07(M8)/304	BG-0	10mm	M8	24.5/20	1.0
SKM BG-10(M8)/304	BG-10	13mm	M8	24.5/20	1.0
SKM BG-12(M8)/304	BG-12	15.8mm	M8	24.5/20	1.0
SKM BG-15(M8)/304	BG-15	18.5mm	M8	24.5/20	1.0
SKM BG-17(M8)/304	BG-17	21.2mm	M8	24.5/20	1.0
SKM BG-20(M8)/304	BG-20	25mm	M8	24.5/20	1.0
SKM BG-23(M8)/304	BG-23	28.5mm	M8	24.5/20	1.0
SKM BG-25(M8)/304	BG-25	30.0mm	M8	24.5/20	1.0
SKM BG-29(M8)/304	BG-29	34.5mm	M8	24.5/20	1.0
SKM BG-36(M8)/304	BG-36	42.5mm	M8	24.5/20	1.0
SKM BG-48(M8)/304	BG-48	54.5mm	M8	24.5/20	1.0
SKM/M10
SKM BG-07(M10)/304	BG-07	10mm	M10	30/25	1.0
SKM BG-10(M10)/304	BG-10	13mm	M10	30/25	1.0
SKM BG-12(M10)/304	BG-12	15.8mm	M10	30/25	1.0
SKM BG-15(M10)/304	BG-15	18.5mm	M10	30/25	1.0
SKM BG-17(M10)/304	BG-17	21.2mm	M10	30/25	1.0
SKM BG-20(M10)/304	BG-20	25mm	M10	30/25	1.0
SKM BG-23(M10)/304	BG-23	28.5mm	M10	30/25	1.0
SKM BG-25(M10)/304	BG-25	30.0mm	M10	30/25	1.0
SKM BG-29(M10)/304	BG-29	34.5mm	M10	30/25	1.0
SKM BG-36(M10)/304	BG-36	42.5mm	M10	30/25	1.0
SKM BG-48(M10)/304	BG-48	54.5mm	M10	30/25	1.0
SKM BG-70(M10)/304	BG-67	70.0mm	M10	30/25	1.0
