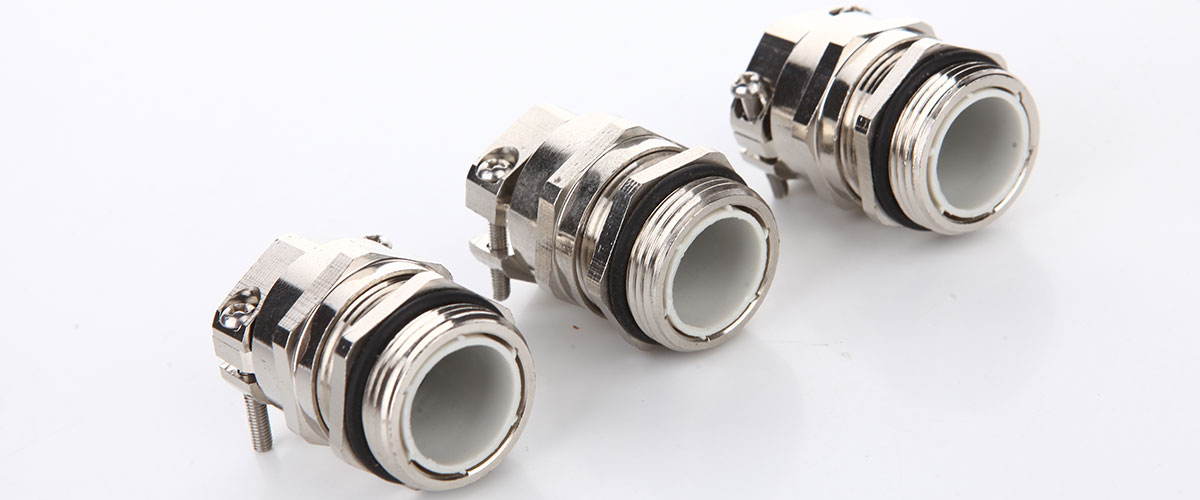

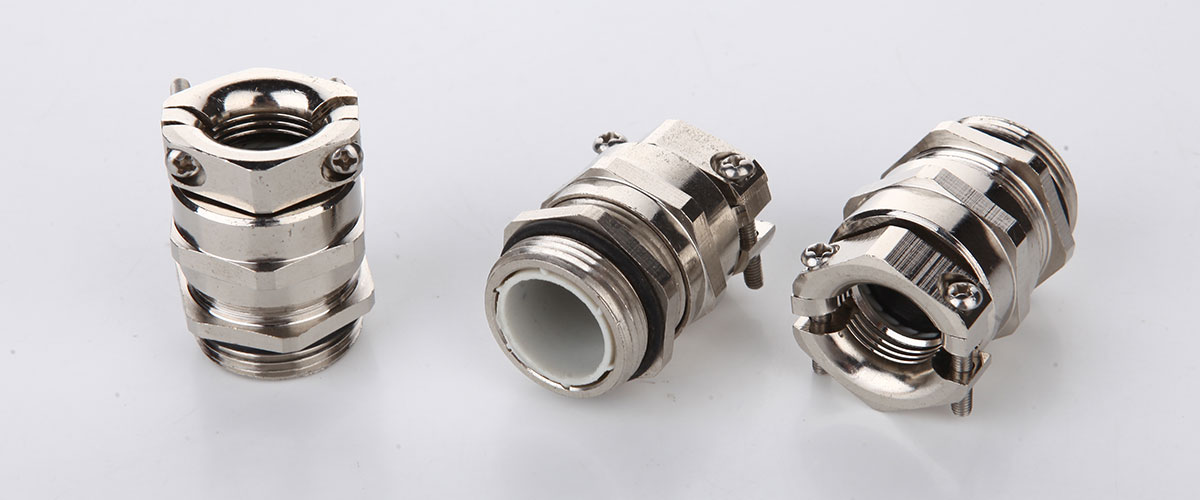

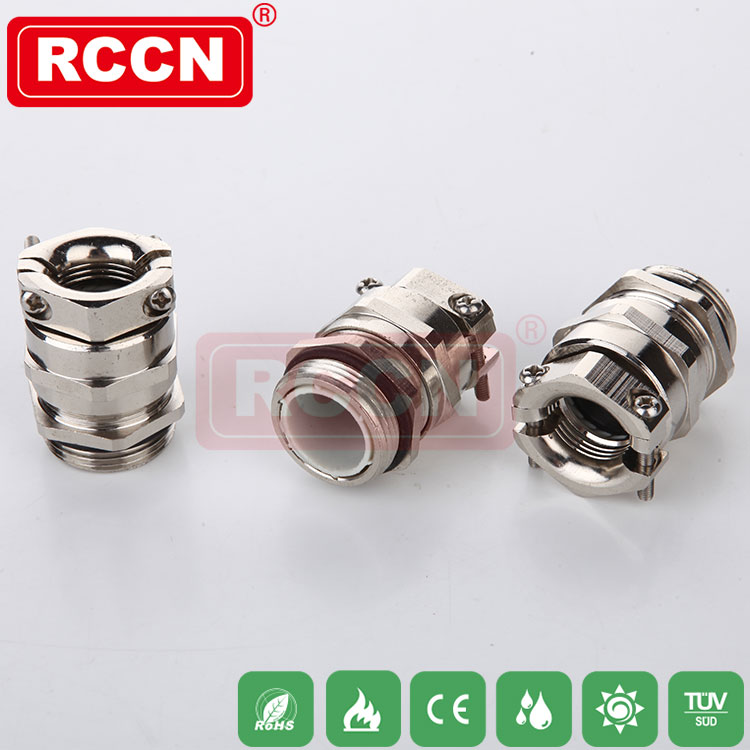

Glândula de cabo DH

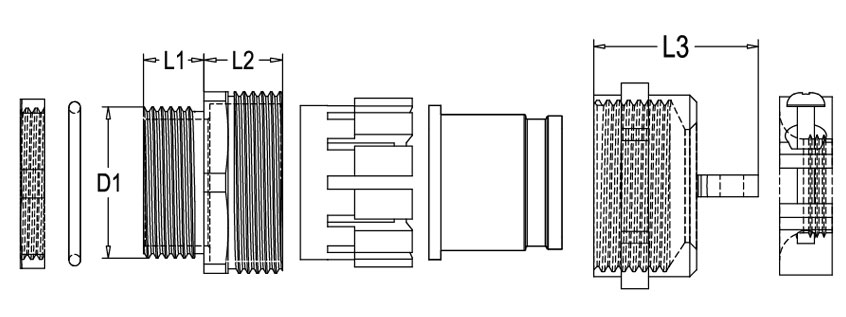

Comprimento da linha M	Alemanha thread PG	América segmento NPT	Tópico em inglês G	Cabo Alcance	M	PG	NPT	G	Conjunto Comprimento L2 + L3	Chave inglesa SW A / F
DH-M12×1.5-6.5	DH-PG7-6.5	DH-NPT1/4-6.5	DH-G1/4-6.5	3-6.5	5	5	8	7	25	14
DH-M16×1.5-8	DH-PG9-8	DH-NPT3/8-8	DH-G3/8-8	4-8	6	6	15	8	27	17
DH-M18×1.5-10	DH-PG11-10	DH-NPT3/8-10	DH-G3/8-10	5-10	6	6	15	8	29	20
DH-M20×1.5-12	DH-PG13.5-12	DH-NPT1/2-12	DH-G1/2-12	6-12	6.5	6.5	13	8	31	22
DH-M22×1.5-14	DH-PG16-14	DH-NPT1/2-14	DH-G1/2-14	10-14	6.5	6.5	13	8	31	24
DH-M25×1.5-18	DH-PG21-18	DH-NPT3/4-18	DH-G3/4-18	13-18	7	7	15	8	37	30
DH-M32×1.5-25	DH-PG29-25	DH-NPT1-25	DH-G1-25	18-25	8	8	16	10	42	40
DH-M40×1.5-32	DH-PG36-32	DH-NPT1-1/4-32	DH-G1-1/4-32	22-32	8	8	18	10	48	50
DH-M50×1.5-38	DH-PG42-38	DH-NPT1-1/2-38	DH-G1-1/2-38	32-38	9	9	18	10	50	57
DH-M60×1.5-44	DH-PG48-44	DH-NPT2-44	DH-G2-44	37-44	10	10	18	12	51	64
DH-M63×1.5-44				37-44	10	/	/	/	51	64/68
DH-M16×1.5L-8	DH-PG9L-8			4-8	10	10	/	/	27	17
DH-M20×1.5L-12	DH-PG13.5L-12			6-12	10	10	/	/	31	22
DH-M25×1.5L-18	DH-PG21L-18			13-18	12	12	/	/	37	30
DH-M32×1.5L-25	DH-PG29L-25			18-25	12	12	/	/	42	40
DH-M40×1.5L-32	DH-PG36L-32			22-32	15	15	/	/	48	50
DH-M50×1.5L-38	DH-PG42L-38			32-38	15	15	/	/	/	57
DH-M63×1.5L-44	DH-PG48L-44			37-44	15	15	/	/	51	64/68
