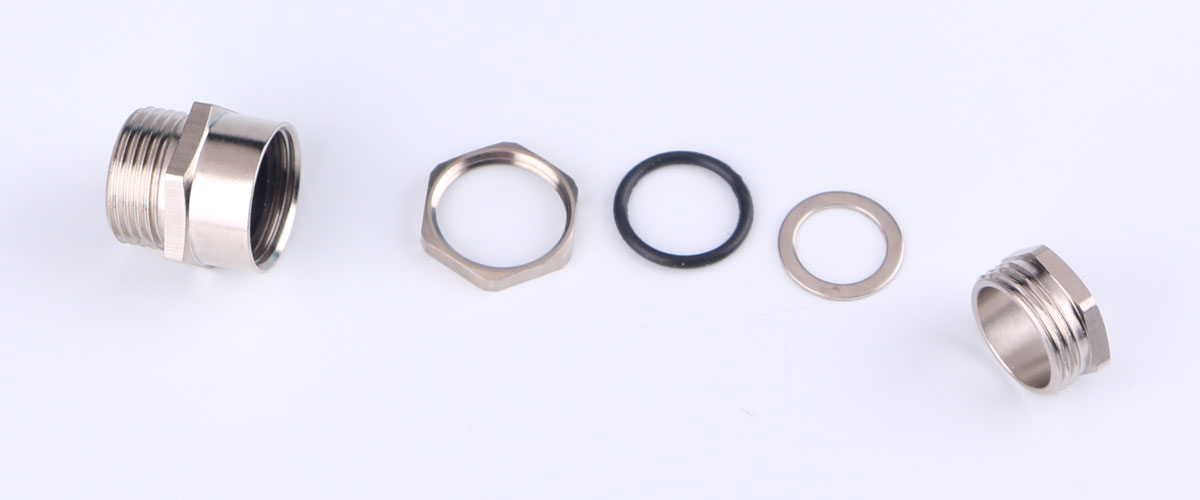

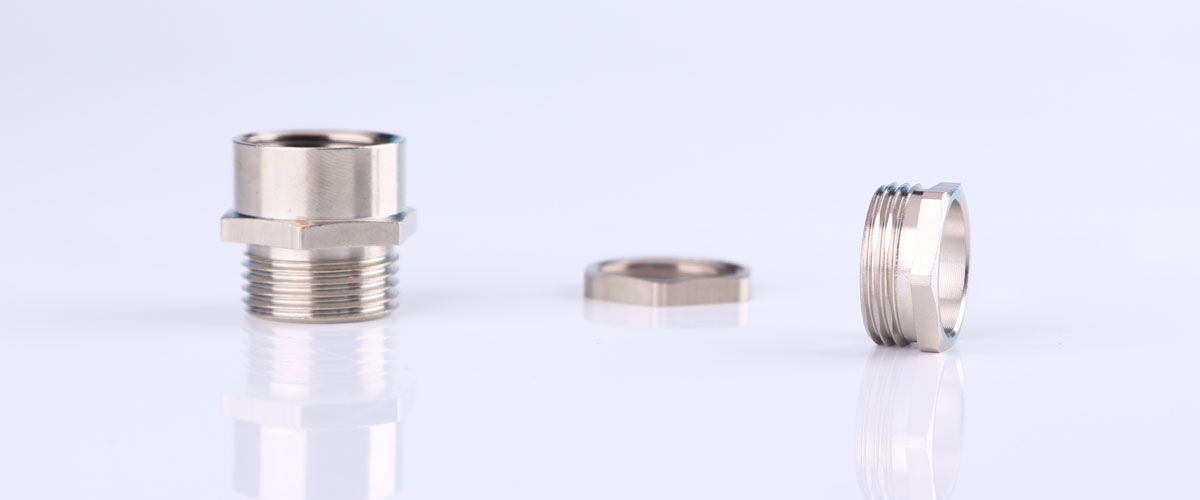

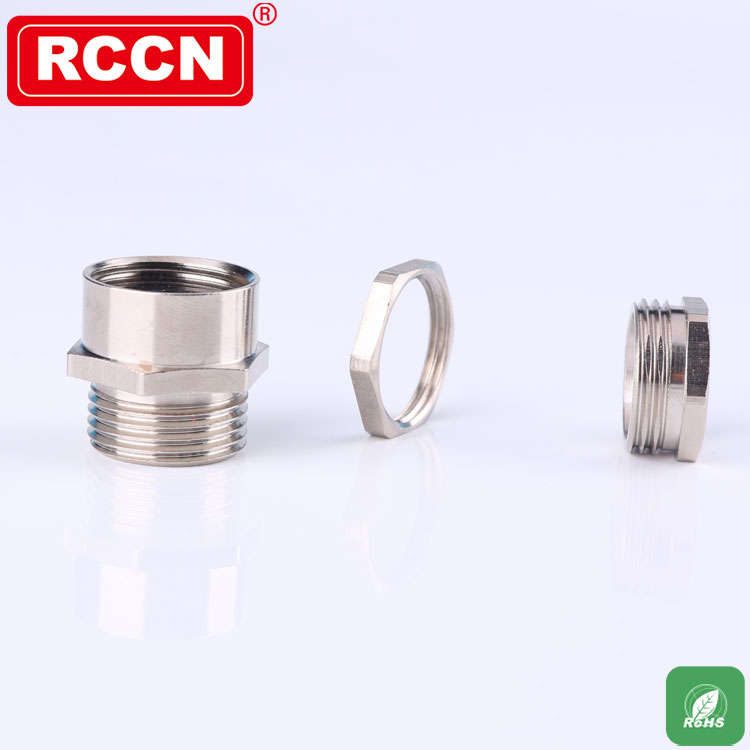

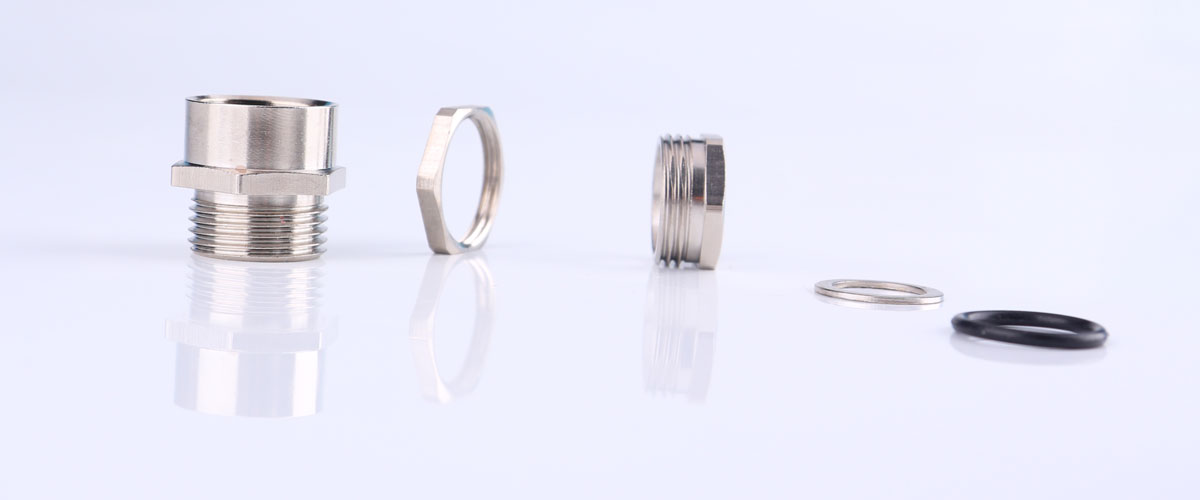

Conector de cabo de latão SPK

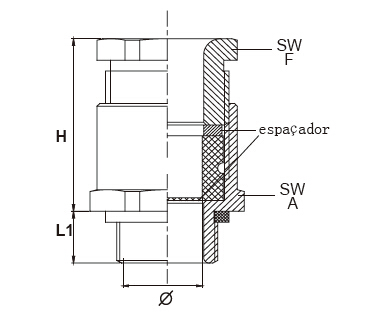

item número	Fio	Faixa de cabo Φ	Fio O.D. D1	Painel Montagem Buraco	Fio Comprimento L1	Conjunto Comprimento H	Chave inglesa tamanho D2	Std.Pkg Pcs
Fio da Alemanha								100PCS
DIN-PG-7	PG-7	6-8	12.5	12.5-12.8	5	15	15
DIN-PG-9	PG-9	6-8	15.2	15.2-15.8	6	17	17
DIN-PG-9	PG-9	8-10	15.2	15.2-15.8	6	17	17
DIN-PG-11	PG-11	6-8	18.6	18.6-18.9	6	17	20
DIN-PG-11	PG-11	8-10	18.6	18.6-18.9	6	17	20
DIN-PG-11	PG-11	10-12	18.6	18.6-18.9	6	18	20
DIN-PG-13.5	PG-13.5	12-14	20.4	20.4-20.7	7	19.5	24
Comprimento de linha								100PCS
DIN-M12*1.5	M12*1.5	6-8	12	M12*1.5	5	15	15
DIN-M16S*1.5	M16*1.5	6-8	16	M16*1.5	6	17	17
DIN-M16*1.5	M16*1.5	8-10	16	M16*1.5	6	17	17
DIN-M18S*1.5	M18*1.5	6-8	18	M18*1.5	6	17	20
DIN-M18*1.5	M18*1.5	8-10	18	M18*1.5	6	17	20
DIN-M18D*1.5	M18*1.5	10-12	18	M18*1.5	6	18	20
DIN-M20*1.5	M20*1.5	12-14	20	M20*1.5	7	19.5	24
DIN-M25*1.5	M25*1.5	14-18	25	M25*1.5	7	32.5	30/34
DIN-M32*1.5	M32*1.5	17-23	32	M32*1.5	8	32.5	36/40	20PCS
DIN-M36*1.5	M36*1.5	22-27	36	M36*1.5	8	35	45/48	20PCS
DIN-M40*1.5	M40*1.5	26-33	40	M40*1.5	9	35	50/55	5PCS
DIN-M50*1.5	M50*1.5	32-41	50	M50*1.5	9	37	58/65
DIN-M56*2.0	M56*1.5	40-49	56	M56*1.5	9	40	65/70
DIN-M63*1.5	M63*1.5	48-57	63	M63*1.5	10	40	75/80
