Glândula de cabo MGA-SR

RCCN Válvula de cabo de alívio de tensão

Tópico: Metric / EN50262, DIN STANDARD

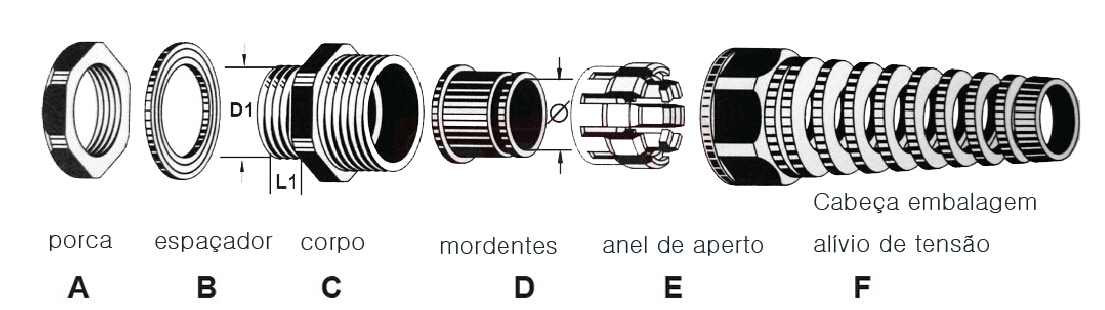

Materail: A.C.D.F feito de Rohs aprovado NYLON66,
B.E feita de EPDM
Certificados: CE, ROHS
Classe ignífuga: UL94V-2.
Temperatura de operação: -40 ° C a 85 ° C.
Proteger: IP68.
Cor: cinza claro (RAL7035), preto (RAL9005)

Válvula de cabo de alívio de tensão MGA-SR

Item número.		Fio	Faixa de cabo Φ	Fio O.D. D1	Painel Montagem Buraco	Fio Comprimento L1	Chave inglesa tamanho A & F	Std.Pkg Pcs
Preto	Branco	Fio	Faixa de cabo Φ	Fio O.D. D1	Painel Montagem Buraco	Fio Comprimento L1	Chave inglesa tamanho A & F	Std.Pkg Pcs
MG12A-05-SRB	MG12A-05-SRG	M12*1.5	3-5.3	12	12-12.3	8.5	18/19	50PCS
MG12A-08-SRB	MG12A-08-SRG	M12*1.5	4-8	12	12-12.3	8.5	18/19
MG16A-07-SRB	MG16A-07-SRG	M16*1.5	4-7	16	16-16.3	15	22/22
MG16A-10-SRB	MG16A-10-SRG	M16*1.5	6-10	16	16-16.3	15	22/22
MG20A-11-SRB	MG20A-11-SRG	M20*1.5	6-11	20	20-20.3	15	27/27
MG20A-14-SRB	MG20A-14-SRG	M20*1.5	9-14	20	20-20.3	15	27/27
MG25A-16-SRB	MG25A-16-SRG	M25*1.5	10-16	25	25-25.3	15	33/33
MG25A-18-SRB	MG25A-18-SRG	M25*1.5	13-18	25	25-25.3	15	33/33
PG Alemanha rosca
PG7A-05-SRB	PG7A-05-SRG	PG7	3-5.5	12.5	12.5-12.8	8	17/19	50PCS
PG7A-08-SRB	PG7A-08-SRG	PG7	4-8	12.5	12.5-12.8	8	17/19
PG9A-05-SRB	PG9A-05-SRG	PG9	3-5.5	15.2	15.2-15.5	8.2	22/19
PG9A-08-SRB	PG9A-08-SRG	PG9	4-8	15.2	15.2-15.5	8.2	22/19
PG11A-07-SRB	PG11A-07-SRG	PG11	4-7	18.6	18.6-18.9	10	24/22
PG11A-10-SRB	PG11A-10-SRG	PG11	5-10	18.6	18.6-18.9	10	24/22
PG13.5A-08-SRB	PG13.5A-08-SRG	PG13.5	4-8	20.4	20.4-20.7	10	27/24
PG13.5A-12-SRB	PG13.5A-12-SRG	PG13.5	6-12.5	20.4	20.4-20.7	10	27/24
PG16A-11-SRB	PG16A-11-SRG	PG16	6-11	22.5	22.5-22.8	10.8	30/27
PG16A-14-SRB	PG16A-14-SRG	PG16	8.5-14	22.5	22.5-22.8	10.8	30/27
PG21A-16-SRB	PG21A-16-SRG	PG21	10-16	28.3	28.3-28.7	12	36/33
PG21A-18-SRB	PG21A-18-SRG	PG21	12.5-18	28.3	28.3-28.7	12	36/33
